Welcome to AV Automation
Services
Industrial Automation Projects
UL 508a Listed Control Panel Design
- Design electrical control panels to automate industrial machinery and manufacturing processes
- Work with Valu Electric to manufacture then commission control panels at customer sites
- Previous projects include: hydraulic press machines, industrial ovens, conveyor belt systems, bin dump machines, palletizer machines, degreening room control systems
Machine Control System Upgrades
- Trace out existing wiring of a machine and inspect for damages
- Create electrical drawings for the machine using AutoCAD Electrical
- Add additional safety devices and components to the circuitry. Re-wire circuits as needed
- Programmable Logic Controller (PLC) processor and Human Machine Interface (HMI) hardware replacement
- Test and commission the machine to verify functionality
PLC Troubleshooting & Modifications
- PLC program and HMI screen design/modification
- Go live with the PLC to upload the program or clear a fault
Software Available
- Rockwell Automation
- Studio 5000 (Rev 32)
- RSLogix 500 Legacy Edition
- FactoryTalk View Machine Edition
- Connected Components Workbench
- Automation Direct
- Productivity Suite PLC
- CMORE Programming
Engineering & Design
CFD Flow Analysis of Temperature Controlled Rooms
Project Management of Industrial Machinery Installations
Laser Engraving
- Create labels for machinery and electrical control panels
- 12" x 8" Working Space
- Usable Material:
- Wood, Acrylic, Leather, Rubber

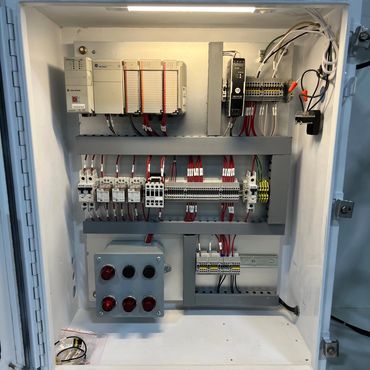

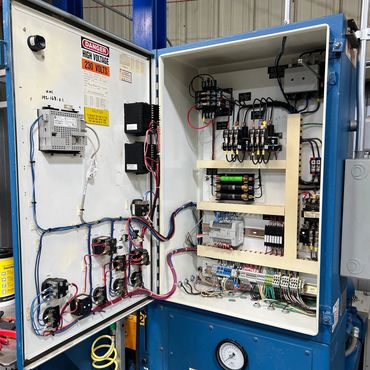

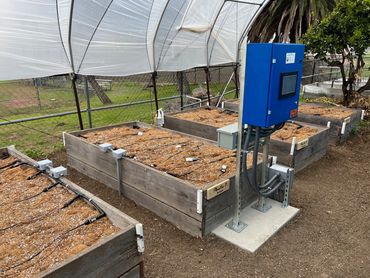

Recently Completed Projects
.jpg/:/cr=t:21.15%25,l:0%25,w:100%25,h:56.39%25/rs=w:370,h:278.1954887218045,cg:true)
